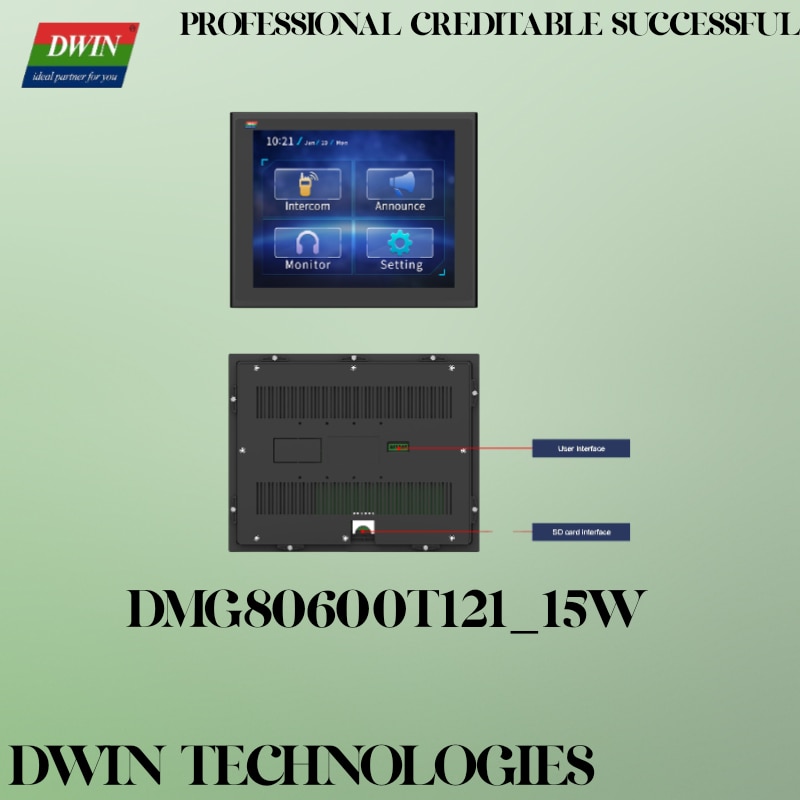

The DWIN DMG80600T121_15W is a 12.1-inch industrial-grade LCD display module with an enclosure. Here are its key features: Display: 12.1-inch TN-TFT-LCD with a resolution of 800x600 pixels and 16.7M colors (24-bit color depth). It has a normal viewing angle of 70°/70°/50°/70° (L/R/U/D). Backlight: LED backlight with a service life of over 30,000 hours, where the brightness decays to 50% under continuous operation at maximum brightness. The brightness is 300nit and can be controlled in 0-100 grades. Note that flickering may occur when brightness is adjusted between 1% and 30%. Processor & Operating System: Based on DWIN's T5L1 ASIC, running the DGUS II system. It has a dual-core GUI with rich controls, and the DWIN OS kernel is open for second-development using DWIN OS language or KEIL C51. Memory: 16MB of NOR Flash for storing fonts, pictures, and audio files. It also supports expansion of up to 64MB NOR Flash or 48MB NOR Flash plus 512MB NAND Flash with expansion slots. Interface: Features TTL/CMOS interface with an 8-pin 2.0mm UART socket. It also supports SD card or online serial port downloading for projects. RS232 and RS485 interfaces with MODBUS protocol are also supported.
