Description

Product details

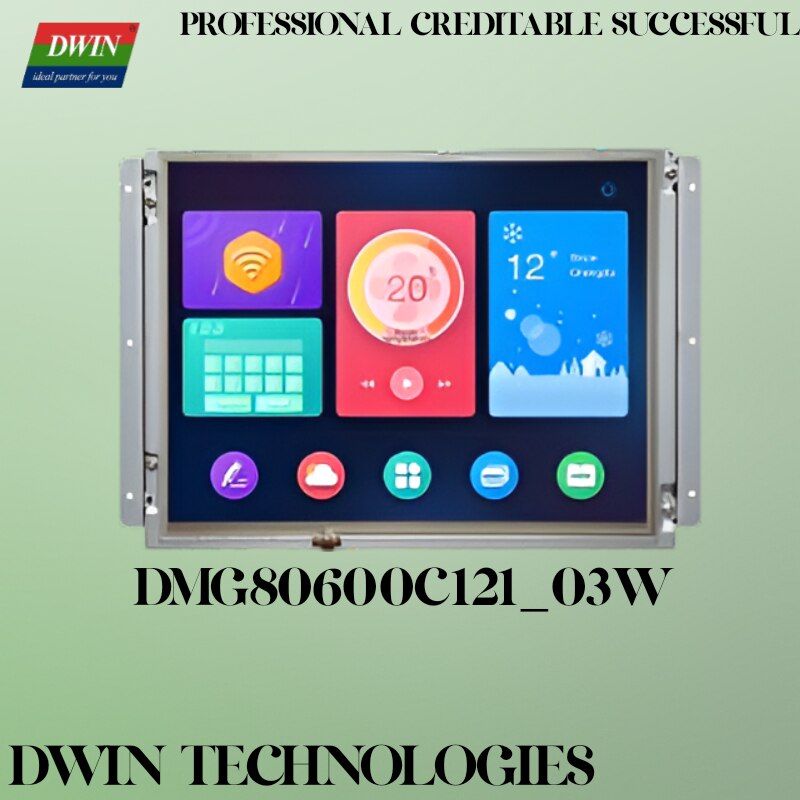

● Based on self-designed T5L1 ASIC, 16.7M Color, 24bit. ● 800*600 Pixel TFT LCD. ● Has onboard speakers and the Power should be <2W ● TA(Instruction set)/ DGUSⅡdevelopment system ● No touch screen/Resistive touch screen/Capacitive touch screen Optional; ● TTL and 232 Interface available, user use 8 Pin2.0mm FCC connection wire connect Products ● The finished project will be downloaded by SD card or uart port ● Using DWIN DGUS V7.6 GUl Development tool , no coding skills required. Easy to develop ● IPS wide view Angle:85/85/85/85 (URUD); ● Reserved WIFI and USB module interface ● Wi-Fi module: connect to the cloud platform to update remotely ● USB module: download files by USB flash disk ● With GUI &OS dual-core GUI with functional controls. DWIN OS kemel is open to the user for the second-development, vie DWIN OS language or KEIL C51 Send email to usDatasheet3D Data Specification Description Product Tags Video Specification DMG80600C121_03WTC 1 Display Color 16.7Mcolors Display Area(A.A) 246.00mm (W) ×184.50mm (H) Resolution 800x600 Pixel Matrix Backlight LED Brightness DMG80600C121_03WN:300nit DMG80600C121_03WTC:300nit DMG80600C121_03WTR:250nit Touch Parameters Type RTP（Resistive touch screen） Structure ITO film + ITO glass Touch Mode Support point touch and drag Surface Hardness 3H Light Transmittance Over 80% Life Over 1,000,000 times touch Type CTP（Capacitive touch screen） Structure ITO film + ITO glass Touch Mode Support point touch and drag Surface Hardness 3H Light Transmittance Over 80% Life Over 1,000,000 times touch Power Voltage 12-36V Operation Current VCC = +5V, Backlight on 720mA VCC = +5V, Backlight off240mA Reliability Test Working temperature -20~70℃ Storage Temperature -30~85℃ Working humidity 10%~90%RH Interface LCM interface 20Pin_1.25mm, LVDS interface RTP interface FPC4_1.0mm CTP：FPC6_1.0mm, IIC interface Baudrate 3105-115200bps Output voltage Output 1, Iout =-4mA; 4.78V Input Voltage(RXD) Output 0, Iout = 4mA; 0.4V User Interface 8Pin_2.0mm socket for power supply and serial communication. Download rate(typical value): 12KByte/s Flash 1Mbytes on-chip Flash with DWIN patent encryption technology ensure code and data security Speaker Onboard speaker. Power: <2W SD interface FAT32. Download files by SD interface can be displayed in statistics. Download rate: 4Mb/s Reserved module interface Wi-Fi module: connect to the cloud platform to update remotely USB module: download files by USB PGT05 interface When product crashes by accident, you can use PGT05 to update DGUS kernel and make the product work well Peripheral DMG80600C121_03WN No touch screen, Speaker DMG80600C121_03WTR Resistive touch screen, Speaker DMG80600C121_03WTC Capacitance touch screen, Speaker Application 1 (3) 1 (4) Previous: 4.3″HMI LCD Display Model:DMG80480T043_09W (Industrial grade) Next: 3 Inch Medical TFT Display DMG64360K030_01W (Medical grade) Related Products 12.1 Inch Intelligent LCD Display with Enclosure DMG80600T121_15WTR (Industrial Grade) 12.1 Inch Intelligent LCD Display with Enclosur... 12.1″TFT LCD Display DMG12800C121_02WTC(Commercial grade) 12.1″TFT LCD Display DMG12800C121_02WTC(... 12.1 Inch Smart Screen, Flash Can be ExtendedDMG10768K121_03W(Medical grade) 12.1 Inch Smart Screen, Flash Can be ExtendedDM... 12.1Inch HMI Display Touch Panel DMG10768T121_01W(Industrial Grade) 12.1Inch HMI Display Touch Panel DMG10768T121_0... 12.1 Inch Outdoor Severe Environment Screen DMG10768S121_03W（Harsh Environment） 12.1 Inch Outdoor Severe Environment Screen D... 12.1 Inch Intelligent LCD Display with Enclosure DMG80600T121_15WTR (Industrial Grade) 12.1 Inch Intelligent LCD Display with Enclosur... 12.1″TFT LCD Display DMG12800C121_02WTC(Commercial grade) 12.1″TFT LCD Display DMG12800C121_02WTC(... 12.1 Inch Smart Screen, Flash Can be ExtendedDMG10768K121_03W(Medical grade) 12.1 Inch Smart Screen, Flash Can be ExtendedDM... 12.1Inch HMI Display Touch Panel DMG10768T121_01W(Industrial Grade) 12.1Inch HMI Display Touch Panel DMG10768T121_0... lho Make your design easier! Contact Us Address: F18, Building 5, Jia 2, North Xisanhuan Road, Haidian Dist, Beijing, China, 100081 Phone: +86-400-018-9008 E-mail: dwinhmi@dwin.com.cn whatsapp: +8619192113166 Subscribe For inquiries about our products or pricelist, please leave your email to us and we will be in touch within 24 hours. Inquiry For Pricelist © Copyright - 2010-2023 : All Rights Reserved. Hot Products - Sitemap - AMP Mobile 4.3 Tft Display, Lcd Touch Screen, Plc Display Screen, Serial Port Lcd Display, Industrial Lcd Display, Lcd Touch Display Panel,
