Description

Product details

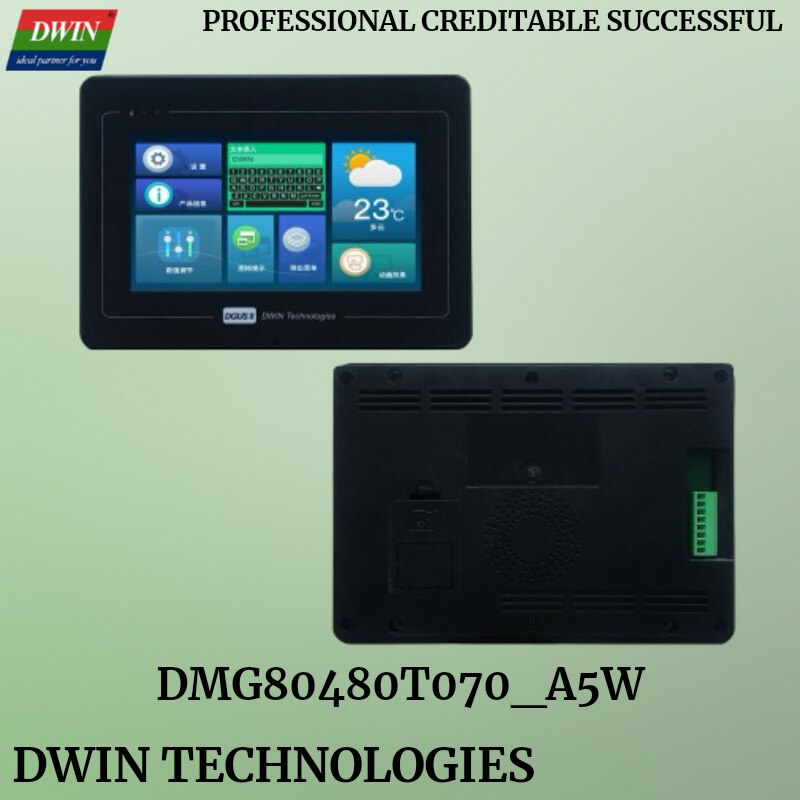

The DWIN DMG80480T070_A5W is a 7-inch industrial-grade HMI (Human Machine Interface) LCD display with a resistive touch screen. Here are some key features and specifications: Display: 7.0-inch TN-TFT-LCD with a resolution of 800x480 pixels. Displays 16.7 million colors (24-bit 8R8G8B). Normal viewing angle of 70°/70°/50°/70° (L/R/U/D). LED backlight with a service life of over 30,000 hours. Brightness of 250 nit. Supports 0°/90°/180°/270° rotation. Touch Panel: Resistive touch panel. Interface: RS232/RS485 interfaces (8Pin_3.81mm Socket). Processor: Self-designed T5L ASIC. Development: Uses the DWIN DGUS V7.6 GUIs Development tool. Memory: 16MBytes NOR Flash for storing fonts, pictures, and audio files, expandable up to 64Mbytes NOR Flash. Other features: Built-in speaker, photosensitive resistance, download via SD card or serial port, supports Modbus protocol and connection with PLC. Operating conditions: Operating temperature: -20℃~70℃. Storage temperature: -30℃~80℃. Operating voltage: 9~36V, typical value of 12V. Manufacturer: DWIN. Availability: Can be found on websites like Indiamart and Hubtronics. The price can vary depending on the seller and whether an enclosure is included.
