Product details

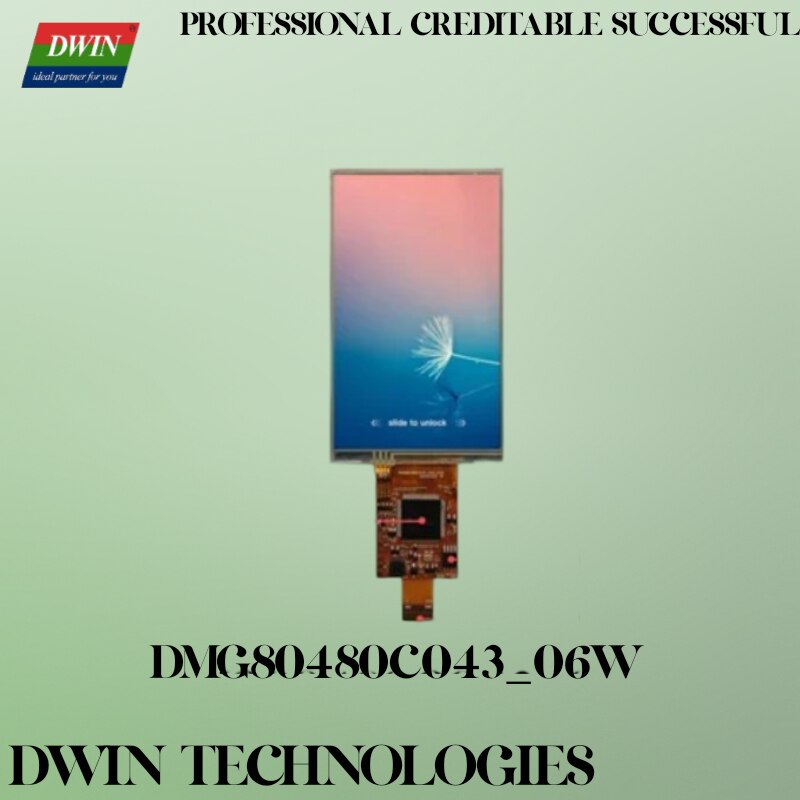

The DMG80480C043_06W is a 4.3-inch smart liquid-crystal display (LCD) module manufactured by DWIN. It is designed for use in a wide variety of industrial and commercial human-machine interface (HMI) applications. Technical specifications Display type: IPS TFT-LCD with a wide viewing angle of 85°/85°/85°/85° (L/R/U/D). Resolution: 800 x 480 pixels. Color depth: 16.7M colors (24-bit). Brightness: 300 nits. Touchscreen: This model can be purchased with a resistive touchscreen or with no touchscreen. Interface: It has a TTL serial interface with a 10-pin FCC connection wire. Development: It uses DWIN's DGUS V7.6 GUIs Development software and is powered by DWIN's T5L1 ASIC. Memory: 16MB of flash memory. Expansion: It includes a buzzer and an SD card interface for additional storage and program downloads. Operating voltage: 5V.
