Description

Product details

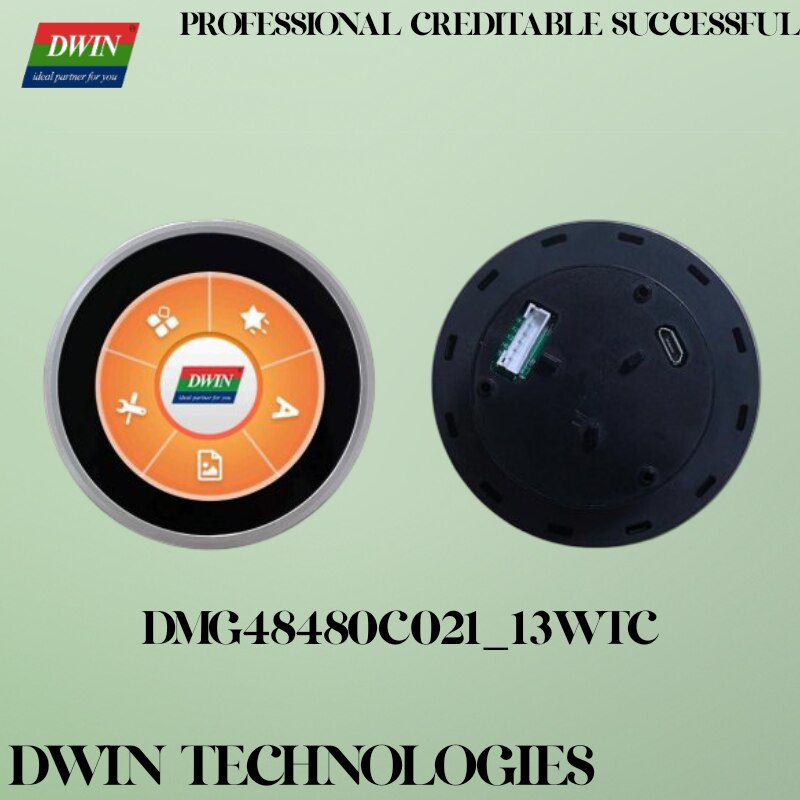

The DWIN DMG48480C021_13WTC is a commercial-grade, 2.1-inch circular rotary smart LCD display with a resolution of 480x480 pixels and an integrated capacitive touch panel. It is based on the T5L0-Q88 ASIC, which runs the DGUS II system for user interface development. Key features Display specifications Panel: IPS-TFT-LCD with a wide viewing angle of 85°/85°/85°/85° (L/R/U/D). Resolution: 480x480 pixels. Color: 18-bit (262K colors). Active Area (A.A.): Diameter of 53.28mm. Brightness: 350 nit. Backlight: LED with a service life of over 20,000 hours. Touch panel Type: Capacitive (CTP) with a durable tempered glass surface (G+FF structure). Features: Supports single-touch and continuous sliding touch gestures. Durability: Rated for over 1,000,000 touch cycles. System and interface System: T5L0-Q88 ASIC running the DGUS II system. Connectivity: 6-pin 2.0mm socket for power and serial communication (UART). MICRO USB interface for power supply (5V). SD card interface for storing UI files, images, fonts, etc. Memory: 16MB NOR Flash.
