Description

Product details

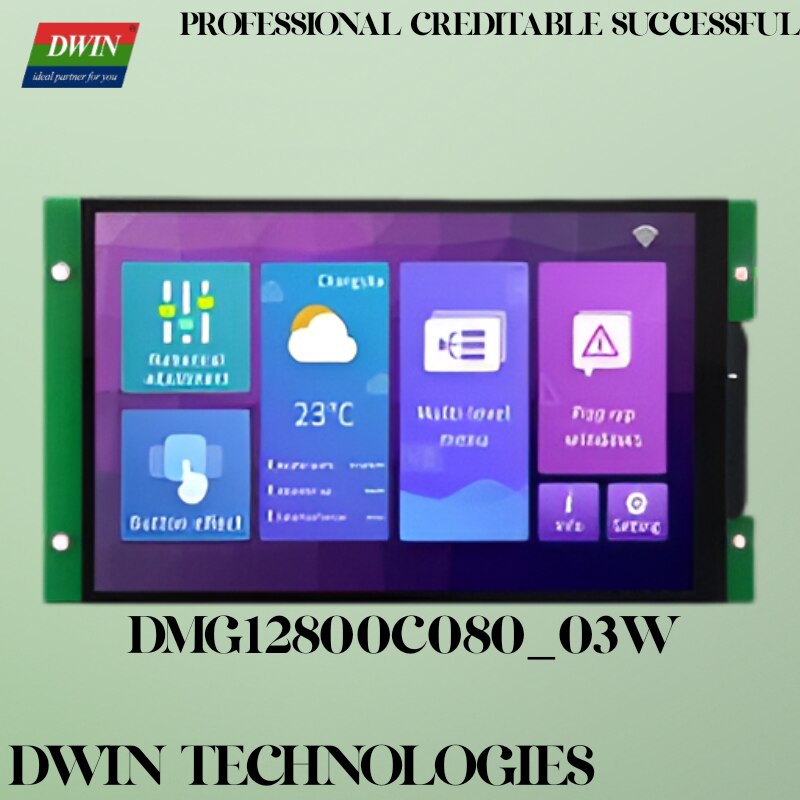

● Based on T5L ASIC 8.0 Inches, 1280xRGBx800, 16.7M Colors, IPS screen, Cost-Effective screen; ● No /Resistive /Capacitive touch screen Optional; ● UART2: ON=TTL/CMOS; OFF=RS232 UART4: ON=TTL/CMOS; OFF=RS232; 8PIN_2.0mm Socket; ● Download via SD card or on-line serial port; ● Easy-to-use DWIN DGUS V7.6 GUIs Development.no coding skills required; ● Dual Development System:DGUSⅡ/TA(Instruction set); ● IPS View Angle:85/85/85/85(L/R/U/D); ● With GUI & OS dual-core, GUI with rich controls. DWIN OS kernel is open to the user for the second-development, via DWIN OS language or C51.
